Short pitch transmission roller chains (A series)

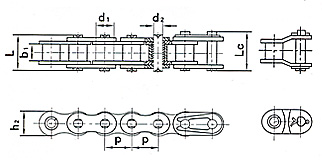

Single strand roller chains

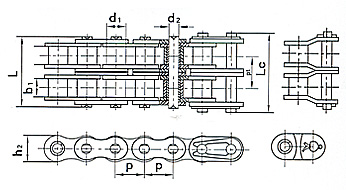

Double strand roller chains
DIN ISO
ANSI

Pitch
Roller diameter
Width between inner plates
Pin diameter
Pin lenth
Inner plate depth
Weight permeter
Transverse
DIN ISO
China NO.
ANSI
China NO.
P
d1max
b1min
d2max
Lmax
Lcmax
h2max
q
pt
mm
mm
mm
mm
mm
mm
mm
kg/m
mm
*04C-1
*25
6.35
3.30
3.18
2.31
7.80
8.45
5.90
0.15
*06C-1
*35
9.525
5.08
4.77
3.58
12.15
13.1
8.95
0.33
085-1
41
12.7
7.77
6.25
3.58
13.75
15.4
9.90
0.41
08A-1
40
12.7
7.95
7.85
3.96
16.6
17.75
11.90
0.62
10A-1
50
15.875
10.16
9.40
5.08
20.90
22.2
15.09
1.02
12A-1
60
19.05
11.91
12.57
5.94
25.9
27.5
18.0
1.50
16A-1
80
25.4
15.88
15.75
7.92
32.80
34.90
24.10
2.60
20A-1
100
31.75
19.05
18.90
9.53
40.00
43.20
30.10
3.91
24A-1
120
38.10
22.23
25.22
11.10
50.45
53.20
36.10
5.62
28A-1
140
44.45
25.40
25.22
12.70
54.20
59.00
42.10
7.50
32A-1
160
50.80
28.58
31.55
14.27
64.30
69.60
48.10
10.10
36A-1
180
57.15
35.71
35.48
17.46
72.80
78.60
53.60
13.45
40A-1
200
63.50
39.68
37.85
19.85
80.30
87.20
60.00
16.15
48A-1
240
76.20
47.63
47.35
23.81
95.50
103.00
72.39
23.20
*04C-2
*25-1
6.35
3.30
3.18
2.31
14.50
15.15
5.90
0.28
6.40
*06C-2
*35-2
9.525
5.08
4.77
3.58
22.5
23.4
8.95
0.63
10.13
08A-2
40-2
12.7
7.95
7.85
3.96
31.1
32.25
11.90
1.12
14.38
10A-2
50-2
15.875
10.16
9.40
5.08
39.00
40.30
15.00
2.00
18.11
12A-2
60-2
19.05
11.91
12.57
5.94
48.80
50.30
18.00
2.92
22.78
16A-2
80-2
25.4
15.88
15.75
7.92
61.90
64.20
24.10
5.15
29.29
20A-2
100-2
28.58
19.05
18.90
9.53
76.20
80.50
30.10
7.80
35.76
24A-2
120-2
35.71
22.23
25.22
11.10
95.40
99.70
36.00
11.70
45.44
28A-2
140-2
39.68
25.40
31.55
12.70
130.10
107.90
42.00
15.14
48.87
32A-2
160-2
47.63
28.58
35.48
14.27
122.90
128.10
48.00
20.14
58.55
